Pi Tape Outside Diameter Measuring Tapes — OD Tapes

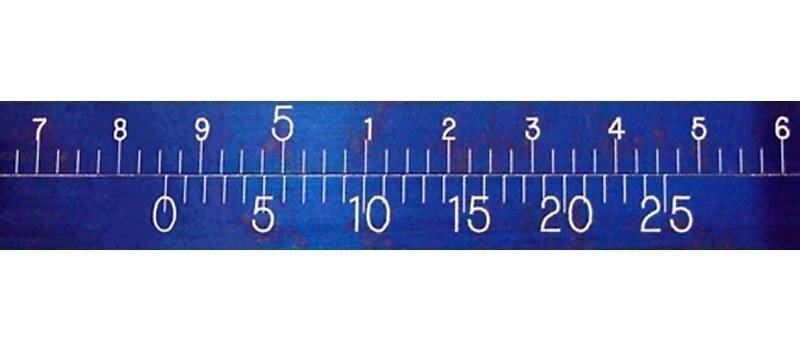

Pi Tape blue easy-to-read diameter tape scale with vernier

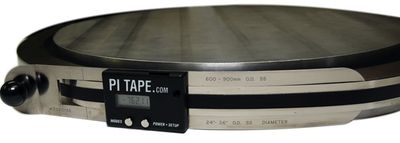

Pi Tape outside diameter tapes wrap around shafts, pipe, rolls, tanks and other cylinders and read the diameter directly, to ±0.001″ (±0.03 mm), with a NIST-traceable calibration report.

Pick your range below and click the model in the finish you need.

Range	1095 spring steel	716 stainless	Blue Easy-to-Read
0.5–2″	P000	P000SS	P000EZ
0.75–9″	P02	P02SS	P02EZ
2–12″	P1	P1SS	P1EZ
2–24″	P1SP	P1SPSS	P1SPEZ
12–24″	P2	P2SS	P2EZ
12–36″	P2SP	P2SPSS	P2SPEZ
24–36″	P3	P3SS	P3EZ
24–48″	P3SP	P3SPSS	P3SPEZ
36–48″	P4	P4SS	P4EZ
48–60″	P5	P5SS	P5EZ
60–72″	P6	P6SS	P6EZ
72–84″	P7	P7SS	P7EZ
84–96″	P8	P8SS	P8EZ
96–108″	P9	P9SS	P9EZ
108–120″	P10	P10SS	P10EZ
120–132″	P11	P11SS	P11EZ
132–144″	P12	P12SS	P12EZ

Range	1095 spring steel	716 stainless	Blue Easy-to-Read
15–50 mm	PM000	PM000SS	PM000EZ
28–300 mm	PM02	PM02SS	PM02EZ
50–300 mm	PM03	PM03SS	PM03EZ
100–300 mm	PM1	PM1SS	PM1EZ
50–600 mm	PM1SP	PM1SPSS	PM1SPEZ
300–600 mm	PM2	PM2SS	PM2EZ
300–900 mm	PM2SP	PM2SPSS	PM2SPEZ
600–900 mm	PM3	PM3SS	PM3EZ
600–1200 mm	PM3SP	PM3SPSS	PM3SPEZ
900–1200 mm	PM4	PM4SS	PM4EZ
1200–1500 mm	PM5	PM5SS	PM5EZ
1500–1800 mm	PM6	PM6SS	PM6EZ
1800–2100 mm	PM7	PM7SS	PM7EZ
2100–2400 mm	PM8	PM8SS	PM8EZ
2400–2700 mm	PM9	PM9SS	PM9EZ
2700–3000 mm	PM10	PM10SS	PM10EZ
3000–3300 mm	PM11	PM11SS	PM11EZ
3300–3600 mm	PM12	PM12SS	PM12EZ

Finish	Use	Model suffix
1095 spring steel	Pi Tape’s standard steel, for dry, non-corrosive conditions	none (e.g. P4)
716 stainless steel	Corrosive, wet, washdown, marine and food environments	SS (e.g. P4SS)
Blue Easy-to-Read	High-contrast blue finish on 1095 steel, easier to read in poor light	EZ (e.g. P4EZ)

Built to your order by Pi Tape: typically ships in 2–4 weeks. Jealco is an authorized Pi Tape distributor. Larger, special and custom tapes are quoted to order.
