Conveyor Belting

Conveyor belting for bulk handling, package lines, food processing and incline conveyors. Every belt is cut to your width and length, and we can lace, splice, cleat or V-guide it before it ships. Pick a belt family to shop, or scroll down to compare them.

Shop by need: Food-grade (FDA) Incline and decline High heat Flame resistant / static conductive

Which belt family fits your conveyor

Family	Build	Rated tension	Typical work
Heavy Duty	Rubber covers on 2 to 4 fabric plies	150 to 600 PIW	Aggregate, grain, wood, recycling, hot material
Light Duty	Thin covers or friction surfaces on 2 to 9 plies	35 to 280 PIW	Packages, assembly lines, food, slider beds, power transmission
PVC	PVC on an interwoven polyester carcass	100 to 750 PIW	Package handling, grain and feed, food, inclines

PIW is the rated working tension, in pounds per inch of belt width. Each belt's page lists its plies, thickness, smallest pulley and temperature range.

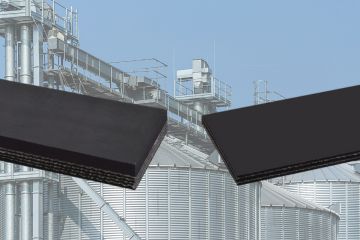

Heavy duty conveyor belting

Rubber-covered belts for impact, abrasion and heavy loads. Choose the cover by what the belt carries:

• Grade 2 (SBR): general-purpose, abrasion-resistant rubber for sand, gravel and general bulk.
• Moderate Oil Resistant (MOR): for oily grain, wood chips and similar material. Also available static conductive.
• Super Oil Resistant (SOR): for heavy oil exposure, including hot asphalt.
• Flame resistant and static conductive: for grain handling and other dusty areas where static build-up is a concern.
• High heat: EPDM covers for material up to 400 °F, and EPM covers for peak temperatures up to 700 °F.
• Cleated and chevron: molded cleats that hold bulk material on inclines.

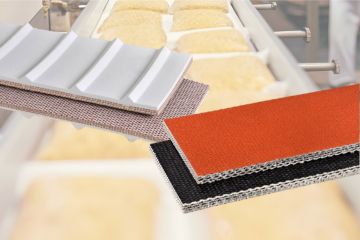

Light duty conveyor belting

Thinner, more flexible belts that run on small pulleys:

• General purpose and package handling: assembly lines, packaging and cartons.
• Food grade: FDA-approved nitrile, white RMV rubber, butyl and PTFE (Teflon) covers.
• Hot stock and water: bare cotton duck tops, and silicone covers rated to 500 °F, for rubber and tire plants.
• Solid woven cotton: FDA-approved all-cotton belting for food and baking lines and slider beds.
• Transmission: friction-both-sides belts for power transmission and metal parts.
• Incline: roughtop, wedgegrip and ribbed tops that grip cartons and bags.

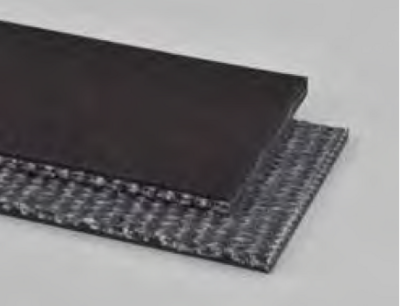

PVC conveyor belting

PVC covers on an interwoven polyester carcass: tough and easy to clean.

• General: package handling, slider beds and roller beds, plus flame-resistant, static-conductive belts up to 750 PIW for grain and feed.
• FDA: white, FDA-approved PVC for food handling, including flour and sugar.
• Incline: roughtop, chevron and crescent-pattern tops.

Quick ship

Popular heavy duty and PVC belts stocked as ready-to-ship 24" and 36" wide x 100 ft rolls. Need another width or length? Order the same belt cut to size from its regular listing.

Frequently asked questions

What does belt ply mean, and how many plies do I need?

Plies are the layers of fabric inside the belt that carry the load. More plies generally means a higher rated tension and a stiffer belt that needs larger pulleys. Our heavy duty belts run 2 to 4 plies; light duty belts run 2 to 9. Each belt's page lists its rated tension (PIW) and smallest pulley. Send us your material, belt width and conveyor length and we will help you choose.

What is the difference between MOR and SOR belts?

MOR means Moderate Oil Resistant: a cover for material with some oil in it, such as oily grain and wood chips. SOR means Super Oil Resistant: a cover for heavy oil exposure, including hot asphalt. Using a cover that is not oil resistant around oil lets the rubber swell and wear early.

Which belts are food grade?

Belts with FDA-approved covers are grouped in our food-grade category: nitrile, white RMV rubber, butyl, PTFE (Teflon), white PVC and solid woven cotton. If your line also falls under USDA inspection, confirm the belt meets the rules for your product.

Can you cut a belt to length and make it endless?

Yes. Every belt is cut to the length you order. We can also install mechanical lacing, splice it endless (vulcanized or glued), and add cleats, sidewalls or V-guides. Finishing is quoted to order; tell us your application requirements.

New to belting terms? Read our conveyor belting guide.
