PI TAPE Model P3SPSS - 24 in. - 48 in. Range Outside Diameter Measuring Tape - Stainless Steel
Home/Store/Precision Diameter Measuring Tapes/Outside Diameter Measuring Tapes/Inch/716 Stainless Steel
Product Details

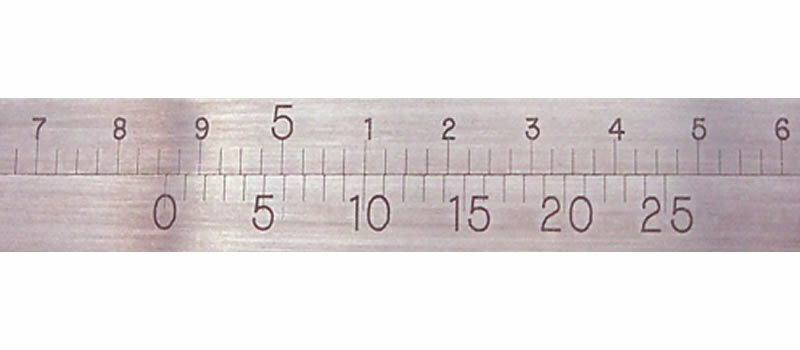

The Pi Tape P3SPSS outside diameter tape measures the outside diameter of shafts, pipe, rolls, tanks and other cylinders from 24″ to 48″ directly. Its scale is graduated in units of π, so it reads the diameter rather than the circumference, and a vernier gives the fine reading.
| Model · Type | P3SPSS · Outside diameter (O.D.) |
| Measuring range | 24″ to 48″ |
| Reading · Accuracy | Inch, vernier to 0.001″ · ±0.001″ |
| Material | 716 stainless steel. For corrosive, wet, washdown, marine and food environments. |
| Tape width · thickness | 1/4″ (6.35 mm) gage, 1/2″ (12.7 mm) body · 0.010″ (0.25 mm) |
| Calibration | Calibration report traceable through NIST to SI units, from Pi Tape’s ISO/IEC 17025 accredited lab |
| Made by | Pi Tape Texas, LLC, Tyler, Texas, USA |
Built to your order by Pi Tape: typically ships in 2–4 weeks. Jealco is an authorized Pi Tape distributor.
Using it: clean the tape and the part, wrap the tape square to the axis of the part, read the main scale at the vernier zero, then add the vernier line that lines up exactly. Pi Tape’s instruction sheet comes with the tape.
Other sizes and recertification: larger, special and custom tapes are quoted to order. Pi Tape also recertifies tapes with a new calibration report; ask us to arrange it.
All Pi Tape models and ranges → · Pi Tape guide on jealco.com →
