PVC
PVC-covered belting on an interwoven polyester carcass: tough, easy to clean and built as a single woven layer. Rated 100 to 750 PIW, from light package belts to grain and feed belts, and cut to your width and length.

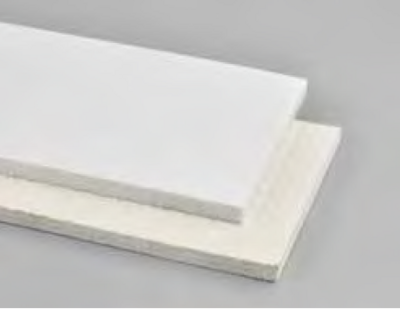

FDA PVC
100 to 450 PIW · white, FDA approved

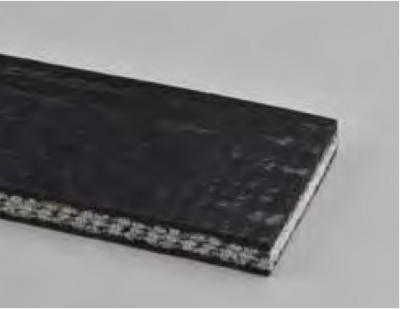

General PVC
120 to 750 PIW · packages to grain and feed
Which PVC belt do you need?
| If your situation is… | Look at | Why |
|---|---|---|
| The belt touches food | FDA PVC | White, FDA-approved PVC, 100 to 450 PIW, including flour and sugar lines |
| Cartons, totes and packages | General PVC | Smooth black PVC, 120 to 200 PIW, with PVC, friction or brushed backs |
| The belt runs on a slider bed | General PVC, brushed back | A brushed underside slides easily over the bed |
| Grain and feed, where fire and static are a concern | General PVC, SC/FR | Flame-resistant, static-conductive belts from 200 to 750 PIW |
| Product slides back on an incline | Incline belting | Roughtop, chevron and crescent-pattern PVC tops |
| Need it fast | Quick Ship | Popular PVC belts stocked as 24" and 36" x 100 ft rolls |
| Material is hotter than 180 °F | Heavy duty high heat | Our PVC belts are rated 0 °F to 180 °F |
Also see: All food-grade belting Heavy duty rubber belting All conveyor belting
Cut, joined and shipped to your size
Choose your width and enter the length you need. Every belt is cut to order, and we can finish it before it ships:
- Mechanical lacing, installed
- Endless splicing, vulcanized or glued, for a seamless loop
- Cleats
- Sidewalls
- V-guides
Finishing is quoted to order, because sizes and options vary. Tell us your application requirements and we will recommend the right setup.
Shipping worldwide. Questions or a special size? sales@jealco.com or +1 770-998-2124.
Frequently asked questions
What does "solid woven" PVC mean?
The carcass is interwoven polyester: woven as one layer rather than built from separate fabric plies bonded with rubber. A PVC cover goes on top and, on many belts, underneath.
PVC or rubber: which do I need?
PVC belts are tough and easy to clean, and suit packages, food and grain and feed. Choose rubber when the material is hot (our PVC belts are rated 0 °F to 180 °F), when lumps drop onto the belt, or when the material is sharp or abrasive.
What is the difference between a PVC, friction or brushed back?
The back is the side that runs on the bed and pulleys. A brushed back slides easily over a slider bed. A friction surface gives more grip on the pulleys. A PVC back (C X C) gives a covered, easy-to-clean surface on both faces.
Do you have flame-resistant, static-conductive PVC?
Yes. Black PVC belts from 200 to 750 PIW, plus the 200 and 450 PIW white FDA belts. Several black PVC belts at 120 to 200 PIW are flame resistant without being static conductive. Check the requirements that apply to your site before you order.
Want the background first? Read our PVC conveyor belting guide.
