Reuland RG2-H5 50 D Hytrel Grommet for Reuland RC2 Series Couplings
$22.13
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Reuland RG2-H5 50 D Hytrel Grommet for Reuland RC2 Series Couplings
Product Details

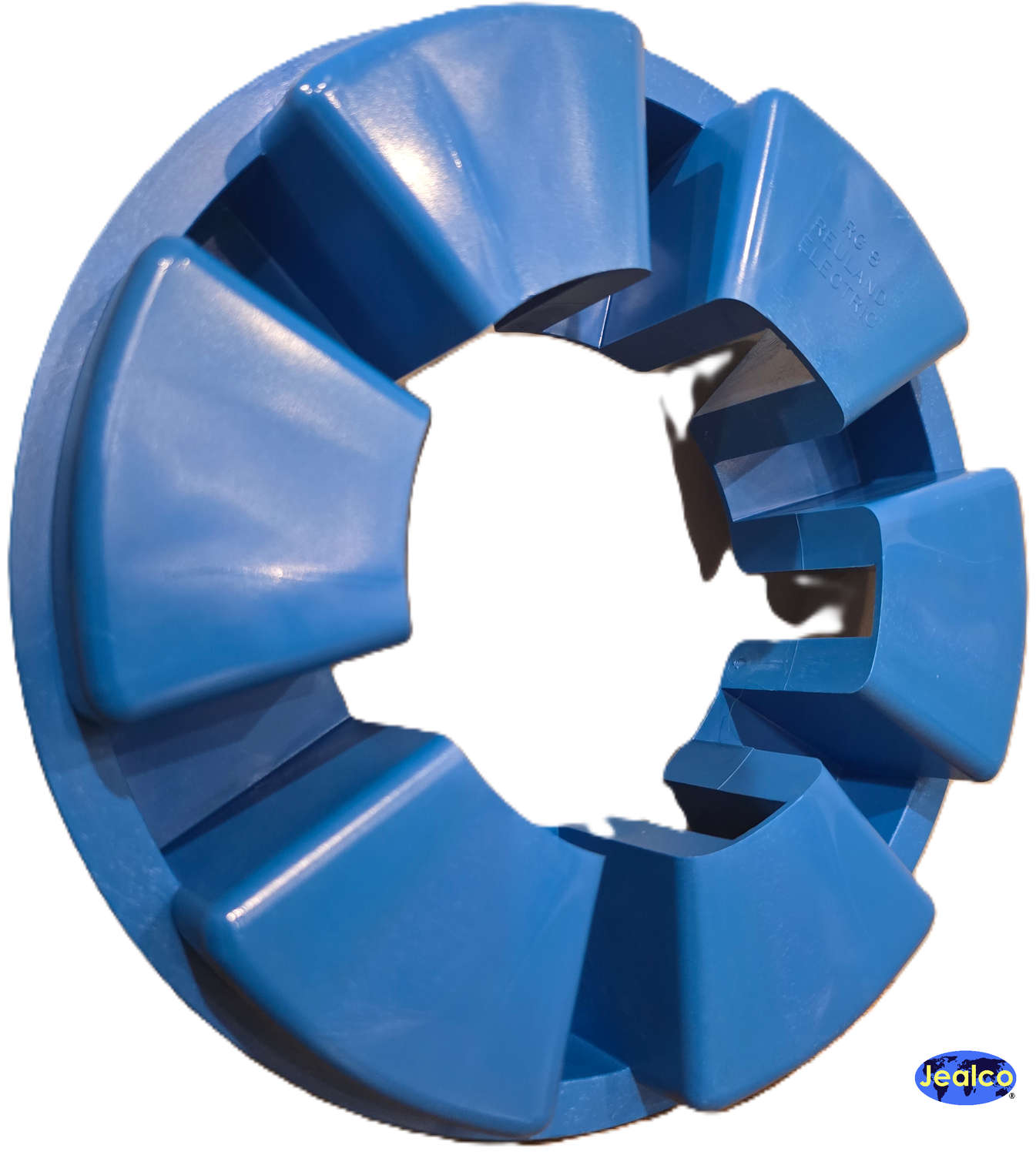

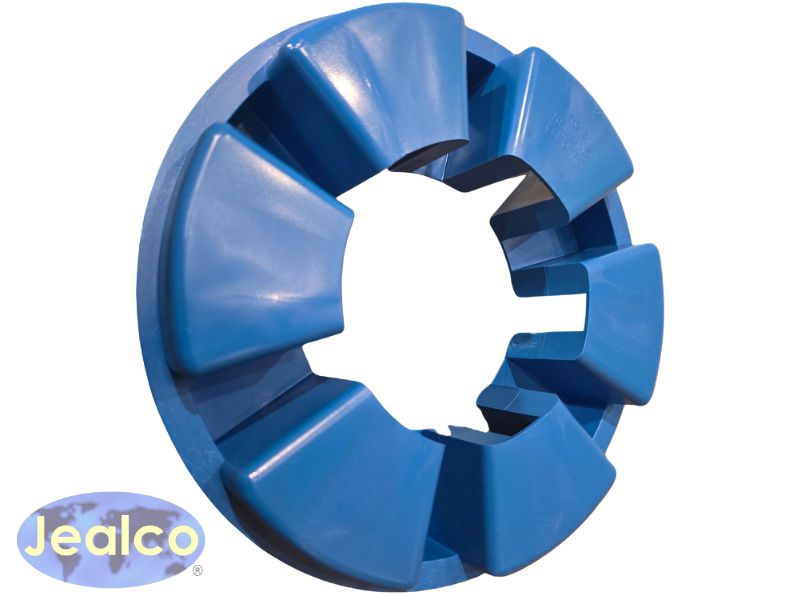

The RG2-H5 is the blue 50D Hytrel grommet (element, or spider) for RC2 couplings: the flexible insert between the two coupling halves. Recommended for severe duty and service factors above 1.5.
| Fits | RC2 coupling halves, any bore |
| Material · Color · Hardness | Hytrel · Blue · 50D |
| Temperature range | −60°F to 250°F |
| Service | Severe duty; service factor above 1.5 |
| RC2 rated torque | Up to 1,103 lb-in (complete coupling) |
| Standard alternative | RG2-L9: black 34D, −30°F to 175°F, service factor up to 1.5 |
| Weight · Origin · HTS | 0.25 lb · USA · 8483.60.8000 |
Wear part: inspect it periodically and replace it when cracked, compressed or deteriorated. The grommet keeps the two metal halves from touching. Trilex may mark this part RG2-H9; it is the same blue 50D grommet.
Reuland or Trilex? Reuland transferred the RC coupling drawings and manufacturing rights to Trilex Fluid Power, which now makes the line to the same design. You may receive original Reuland stock or a Trilex-made part; fit and performance are the same.
