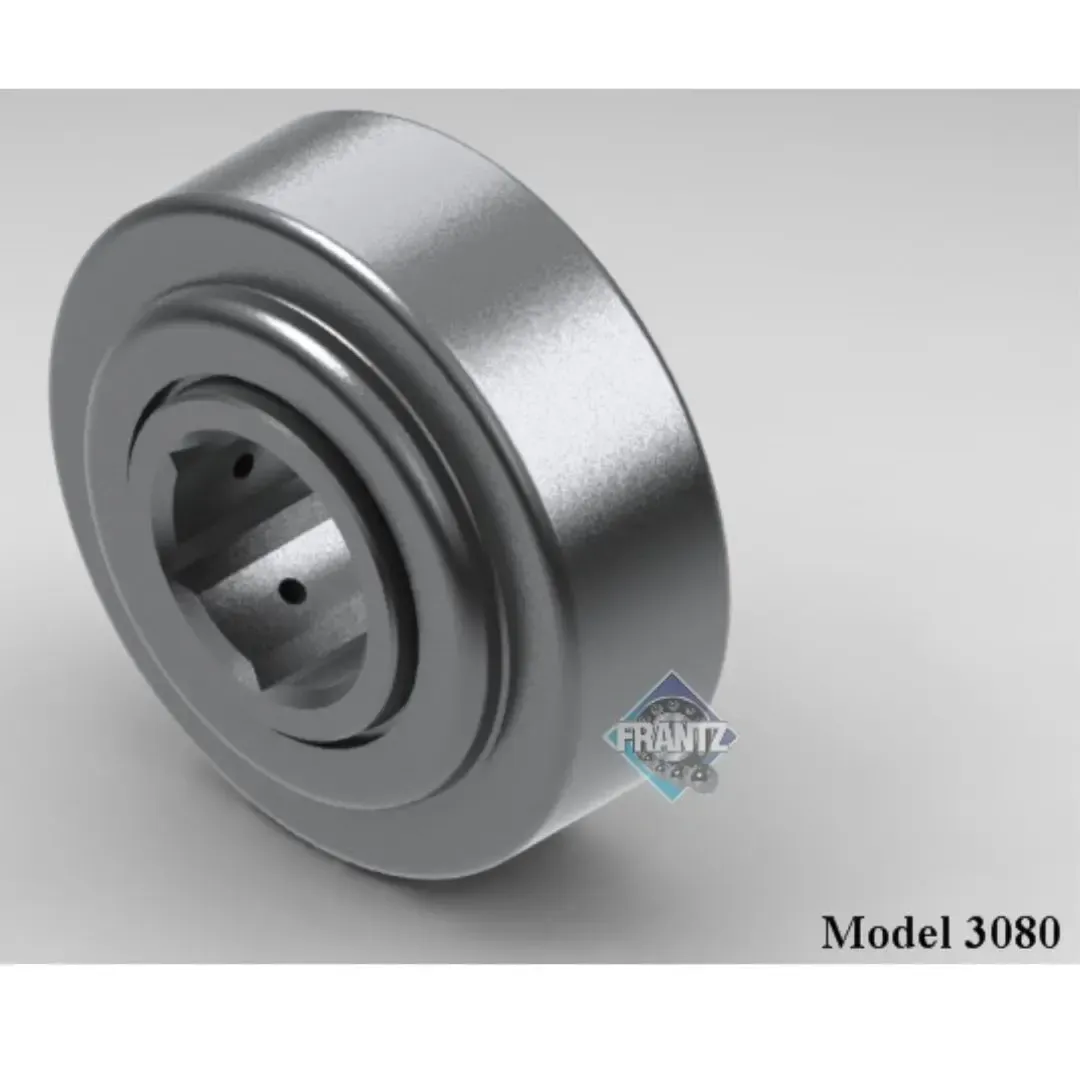

Frantz 3080 Straight-Faced Non-Precision Conveyor Bearing – 3-1/2 in x 0.300 in wall Tube, 1-1/16 in Hex Bore
$0.00
Requires Quote
Lubrication
In stock
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Frantz 3080 Straight-Faced Non-Precision Conveyor Bearing – 3-1/2 in x 0.300 in wall Tube, 1-1/16 in Hex Bore
Product Details
The Frantz 3080 is a non-precision (unground, commercial) conveyor bearing, the economical choice for gravity rollers and slower powered conveyors. Non-precision bearings roll with very little resistance and tolerate the axle deflection of long or heavily loaded rollers; Frantz tests them to exceed the CEMA standard of one million revolutions. Straight-faced: it sits flush in a counterbored tube.
| Frantz model | 3080 |
| Series | Straight faced unground |
| Precision class | Non-precision |
| Style | Closed Style - Double Race |
| Tube size | 3-1/2 in OD x 0.300 in wall |
| Max body OD | 3.066 in |
| Bore | 1-1/16 in Hex |
| Extension | 0.250 in |
| Load rating | 603 lb per bearing |
| Fit | Counterbore & Press Fit |
| Lubrication | Oil or Grease |
| Seals / shields | Front polymer seal + shield plate; rear shield plate |
| Regreasable | Yes |
| Temperature range | Oil -10 to 220 F; Grease -4 to 220 F |
| Material | Zinc plated steel |
| Frantz part numbers | Oil 3800226023 (as printed); Grease 3800226123 (as printed) |
| Frantz spec sheet | Free on request: email sales@jealco.com |
Quote item: enter the quantity you need and use Request a quote. We confirm price, lead time and packaging with our quote. Some sizes ship from our stock; most ship direct from Frantz in Sterling, Illinois. Jealco is an independent Frantz distributor and exports worldwide.
Choosing a bearing: match the tube OD and gauge, then the axle size and shape (hex or round). Load per bearing is the total load divided by the number of bearings; the roller tube or axle is often the limit. Send us your roller details if you are unsure.
