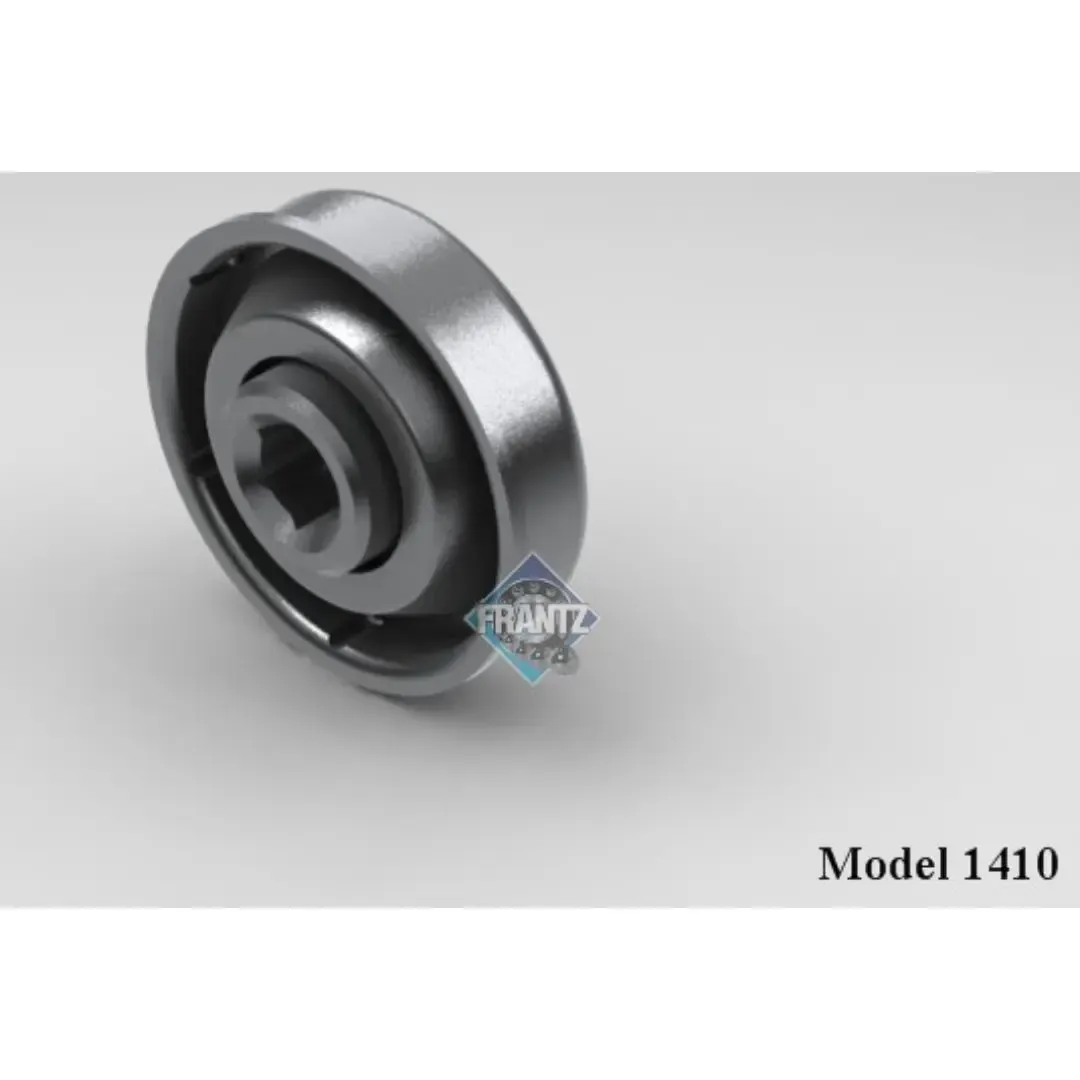

Frantz 1410 Non-Precision Conveyor Bearing – 1-1/2 in x 18 ga Tube, 5/16 in Hex Bore
$0.00
Requires Quote
Lubrication
In stock
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Frantz 1410 Non-Precision Conveyor Bearing – 1-1/2 in x 18 ga Tube, 5/16 in Hex Bore
Product Details
The Frantz 1410 is a non-precision (unground, commercial) conveyor bearing, the economical choice for gravity rollers and slower powered conveyors. Non-precision bearings roll with very little resistance and tolerate the axle deflection of long or heavily loaded rollers; Frantz tests them to exceed the CEMA standard of one million revolutions.
Used in pairs for tapered rollers: 1902 with 1405, 1903 with 1410.
| Frantz model | 1410 |
| Series | Flanged unground (commercial) |
| Precision class | Non-precision |
| Style | Open Style - Traditional |
| Tube size | 1-1/2 in OD x 18 ga |
| Max body OD | 1.411 in |
| Bore | 5/16 in Hex |
| Extension | 0.234 in |
| Load rating | 75 lb per bearing |
| Fit | Press & Swage |
| Lubrication | Oil or Grease |
| Seals / shields | Front polymer seal and shield plate |
| Temperature range | Oil -40 to 220 F; Grease -40 to 220 F |
| Material | Dual outer race, case hardened; precision ground carbon steel balls |
| Frantz part numbers | Oil 1410226023; Grease 1410226123 |
| Frantz spec sheet | Free on request: email sales@jealco.com |
Quote item: enter the quantity you need and use Request a quote. We confirm price, lead time and packaging with our quote. Some sizes ship from our stock; most ship direct from Frantz in Sterling, Illinois. Jealco is an independent Frantz distributor and exports worldwide.
Choosing a bearing: match the tube OD and gauge, then the axle size and shape (hex or round). Load per bearing is the total load divided by the number of bearings; the roller tube or axle is often the limit. Send us your roller details if you are unsure.
