CC-HD Heavy Duty

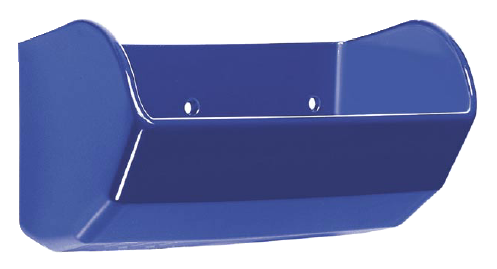

The standard-depth Tapco CC-HD is the workhorse high-speed centrifugal bucket for grain, feed, seed, fertilizer and free-flowing product. It has been the reference bucket in the grain trade for decades, and it remains the default choice when you are replacing like for like.
MaterialPrime-virgin HDPE
Food contactFDA 21 CFR 177.1520
Temperature−60°F to 200°F
Made inUSA
Ships2–3 business days, drilled
Sizes and specifications
| Size | L × Proj. × Depth | Water level (cu in) | Weight ea | Std. drilling | Shop |
|---|---|---|---|---|---|
| 3×2 | 3-1/4″ × 2-1/2″ × 2-1/16″ | 6.0 | 0.13 lb | 2 × 1/4″ | BW |
| 4×3 | 4-1/4″ × 3-1/2″ × 3-1/16″ | 16.8 | 0.26 lb | 2 × 1/4″ | BW |
| 5×4 | 5-1/4″ × 4-1/2″ × 4-1/16″ | 35.8 | 0.46 lb | 2 × 1/4″ | BW |
| 6×4 | 6-1/4″ × 4-1/2″ × 4-1/16″ | 43.3 | 0.53 lb | 2 × 1/4″ | BW |
| 7×4 | 7-1/4″ × 4-1/2″ × 4-1/16″ | 49.7 | 0.60 lb | 3 × 1/4″ | BW |
| 6×5 | 6-5/16″ × 5-1/2″ × 5-1/16″ | 68.3 | 0.80 lb | 2 × 1/4″ | BW |
| 7×5 | 7-5/16″ × 5-1/2″ × 5-1/16″ | 75.8 | 0.98 lb | 3 × 1/4″ | BW |
| 8×5 | 8-5/16″ × 5-1/2″ × 5-1/16″ | 85.4 | 1.10 lb | 3 × 1/4″ | BW |
| 9×5 | 9-5/16″ × 5-1/2″ × 5-1/16″ | 97.9 | 1.02 lb | 3 × 1/4″ | BW |

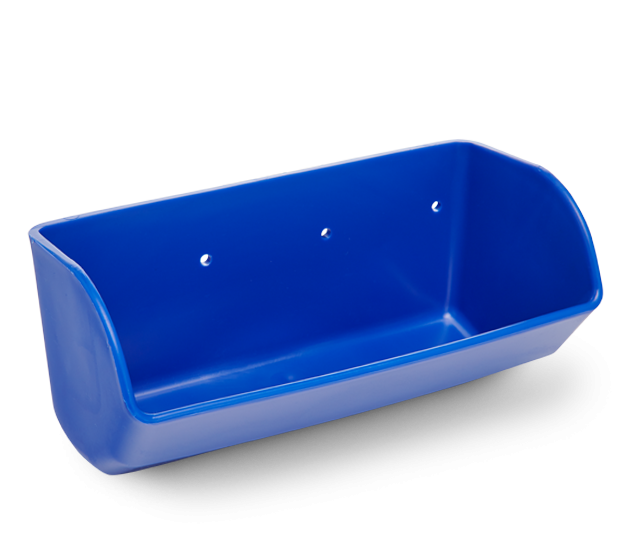

| 10×5 | 10-5/16″ × 5-1/2″ × 5-1/16″ | 113.5 | 1.24 lb | 3 × 1/4″ | BW |
| 11×5 | 11-5/16″ × 5-1/2″ × 5-1/16″ | 127.2 | 1.27 lb | 4 × 1/4″ | BW |
| 12×5 | 12-5/16″ × 5-1/2″ × 5-1/16″ | 143.1 | 1.35 lb | 4 × 1/4″ | BW |
| 9×6 | 9-5/16″ × 6-5/8″ × 6-1/16″ | 135.9 | 1.45 lb | 3 × 1/4″ | BW |
| 10×6 | 10-5/16″ × 6-5/8″ × 6-1/16″ | 150.4 | 1.57 lb | 3 × 1/4″ | BW |
| 11×6 | 11-5/16″ × 6-5/8″ × 6-1/16″ | 173.4 | 1.69 lb | 4 × 1/4″ | BW |
| 12×6 | 12-5/16″ × 6-5/8″ × 6-1/16″ | 185.4 | 1.76 lb | 4 × 1/4″ | BW |
| 14×6 | 13-7/8″ × 6-5/8″ × 5-7/8″ | 198.3 | 1.98 lb | 5 × 1/4″ | BW |

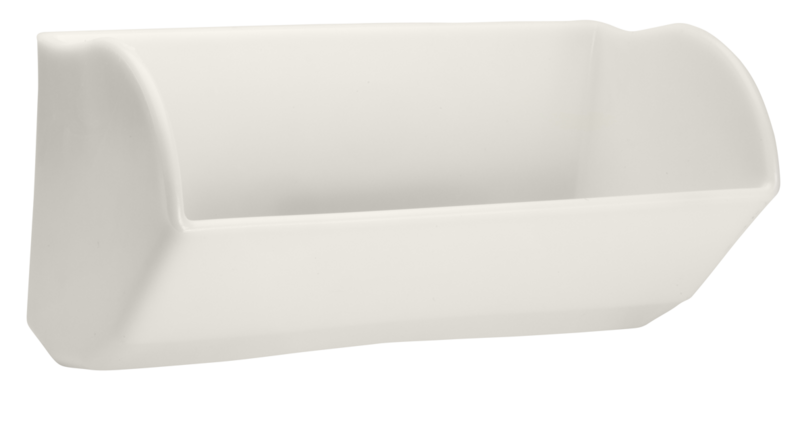

| 18×7 | 18-7/16″ × 7-3/4″ × 7-1/16″ | 396.7 | 4.00 lb | 6 × 5/16″ | BW |
| 20×7 | 20-7/16″ × 7-3/4″ × 7-1/16″ | 433.3 | 4.50 lb | 6 × 5/16″ | BW |
Dimensions and capacities per Tapco published data (capacity ±3%, dimensions ±3/16″). Usable capacity is typically water level + 10%. Sold by the carton; carton quantity is on each listing.
Looking for a larger CC-HD size such as 10×7, 12×7 or 16×7? Tapco now builds those sizes in its molded CC-LP Low Profile design, and 12×8 / 14×8 in the deep U-HD Super Capacity line. Same leg fit; see the Elevator Buckets page for the full cross-reference.
Not sure which bucket fits your leg? Send the material, belt width and speed, head-pulley size and the bucket you run now, and we’ll match it. Custom hole and vent patterns, and urethane or nylon in the same sizes, are quoted to order. See the elevator bucket selection guide on jealco.com.
