# Plys: 8
Top Cover: Friction Surface
Bottom Cover: FS
Overall Thickness: 1/2
Color: Tan
Compound: SBR
Working Tension (PIW): 280
Min. Pulley Diameter: 16
Static Conductive: Yes
Temperature Range: -40 �F / 250 �F
Fasteners: Alligator Staple: #125 or Clipper Lace: #1 or Alligator Lace: #5
Description

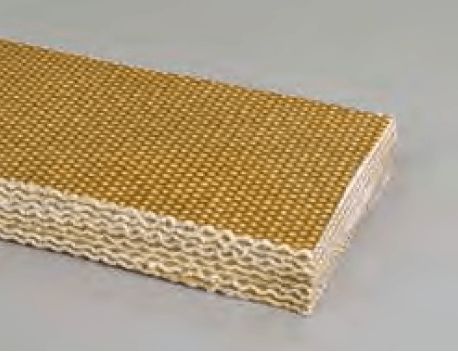

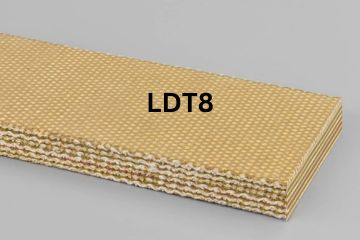

8-PLY 35 OZ. TAN Friction Surface (FS) Top Cover X Friction Surface (FS) Bottom Cover SILVER HARD DUCK Conveyor Belt
Applications
- Severe / Rugged Conditions
- Elevator Applications
Features
- Constructed of rugged silver hard duck fabric plies with heavy skim coats between and friction surface both sides.
- Formulated for severe conditions and rugged service.
- Excellent fastener-holding ability.
- Can be spliced endless or metal laced.
- Very good for elevator applications.
