3-PLY 330# PIW BLACK 1/16 X 1/16 FR/SC/VOR
$0.00
Length (FT)
Enter your text
Width (Inches)
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

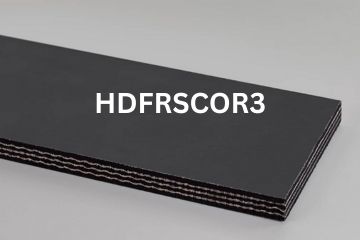

3-PLY 330# PIW BLACK 1/16 X 1/16 FR/SC/VOR
Product Details

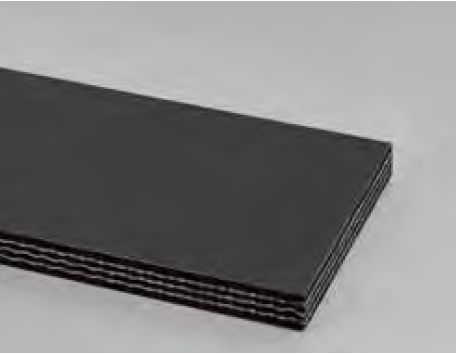

A 3-ply heavy-duty rubber belt rated 330 PIW, with a 1/16" smooth oil-resistant top cover and a rubber bottom cover. It is flame resistant and static conductive. Suited to grain and feed, and to oily material.
| Rated tension330 PIW | Plies3 |
| Overall thickness17/64" | Smallest pulley16" |
| Weight0.14 lb/in·ft (1.74 lb/ft²) | |
What the name means
| 3-PLY | 3 layers of fabric inside the belt carry the load. |
| 330# PIW | Rated working tension: 330 lb per inch of belt width. |
| 1/16 X 1/16 | 1/16" rubber on top, 1/16" rubber on the bottom. |
| FR/SC/VOR | Flame resistant, static conductive and oil resistant. |
Good for
- Oily grain
- Grain conveyors and elevators
Why this belt
- Oil-resistant cover
- Flame resistant and static conductive, for grain handling and other dusty areas where static build-up is a concern
- Runs from -25 °F to 225 °F
- Runs on pulleys as small as 16"
Cut, joined and shipped to your size
Choose your width and enter the length you need. Every belt is cut to order, and we can finish it before it ships:
- Mechanical lacing, installed. Recommended for this belt: Flexco plate #190/R5, Flexco hinged #550
- Endless splicing, vulcanized or glued, for a seamless loop
- Cleats
- Sidewalls
Finishing is quoted to order, because sizes and options vary. Tell us your application requirements and we will recommend the right setup.
Shipping worldwide. Questions or a special size? sales@jealco.com or +1 770-998-2124.
New to belting terms? Read our heavy duty conveyor belting guide.
